5 slots battery swapping cabinet station compatible for 48V,60V,72V swappable battery in electric motorcycle
Specification
| Model | 10 slolts |
| Cabinet size(H*W*D) | 1777*600*850mm |
| Slot size(W*H*D) | 260*230*420mm |
| Input power | 180-264V/AC 50Hz |
| Max input power | 7200W |
| Single input power | 800-1500W |
| Max charging current | 15-18A |
| Output voltage | DC40-88V |
| Charging conversion efficiency | >92% |
| Networking | Standard 4G/WIFI, optional GPS/BT |
| Charging Port | 2+6 Interface |
| Communication Protocol | RS485,CAN |
| Working Temp | -20~60 C° |
| Working Humidty | 5%~95% |
| IP class | IP54 |
| Battery swapping method | APP scan code/NFC/Bluetooth |
Product Advantages :
4G network, main control, electric power protection system
IP54 protection class
Intelligent Electromagnetic Locker Door Control
Intelligent charger
real time monitoring, TF card storage (optional)
Automatic fire extinguishing system for individual slot
Real-time communication with battery BMS, cloud intelligent management and data analysis, fault alarm
Intelligent battery charging status indication
Intelligent cloud platform, phone APP to view nearby station, and manage the swapping progress.
Support remote software upgrade, remote grid power supply switch on and off, remote disable and enable specific slot.

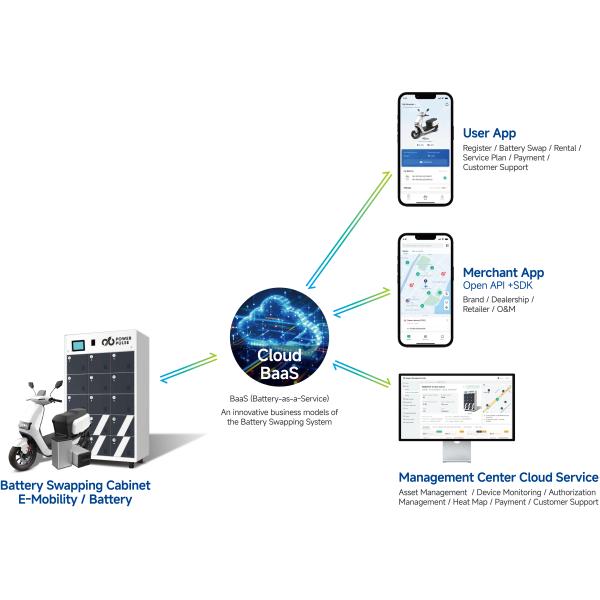

One stop swapping solution provider
- Battery Swapping Cabinets: Designed for e-mobility users, these cabinets offer fast and secure battery swapping to improve travel efficiency.
- User App: Allows users to register, book battery swaps, select rental plans, and make payments conveniently.
- Merchant App: Equipped with open APIs and SDKs to help brands, dealerships, and retailers efficiently manage battery swapping operations.
- Management Center Cloud Service: Provides operators with tools for asset management, device monitoring, heat map analysis, payment processing, and customer support.
Battery swapping system
Company introduction
Power Gogo is a technology-driven company specializing in shared battery swapping and comprehensive support solutions. Dedicated to becoming the world's leading smart energy ecosystem platform, Power-gogo integrates seamlessly into communities, universities, and enterprises to create a safe, reliable regional battery swapping network, addressing the "last mile" of charging and swapping challenges.
Power-gogo has achieved significant milestones in the two-wheeled electric vehicle battery swapping sector. Backed by a professional team, advanced technologies, and an innovative service model, Power-gogo is shaping the future of sustainable urban mobility and setting new benchmarks for green commuting worldwide.
